HBI SERIES
2025

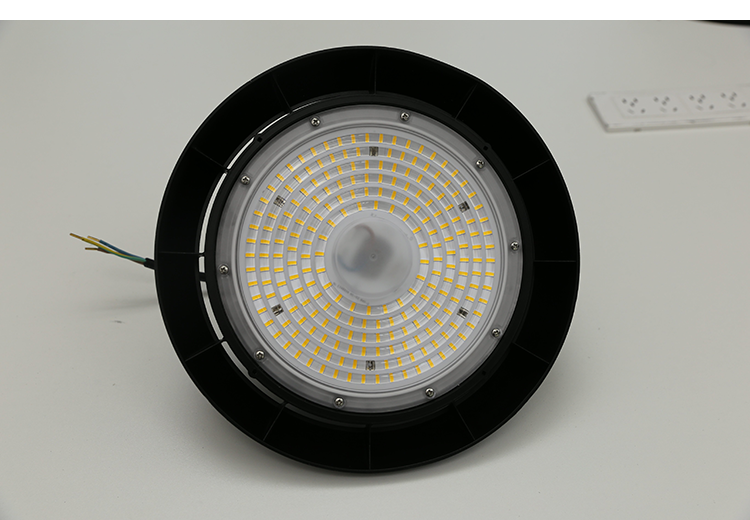

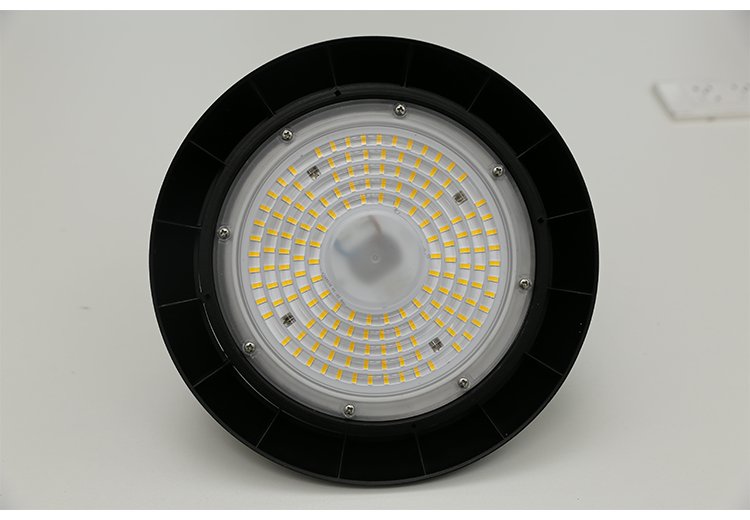

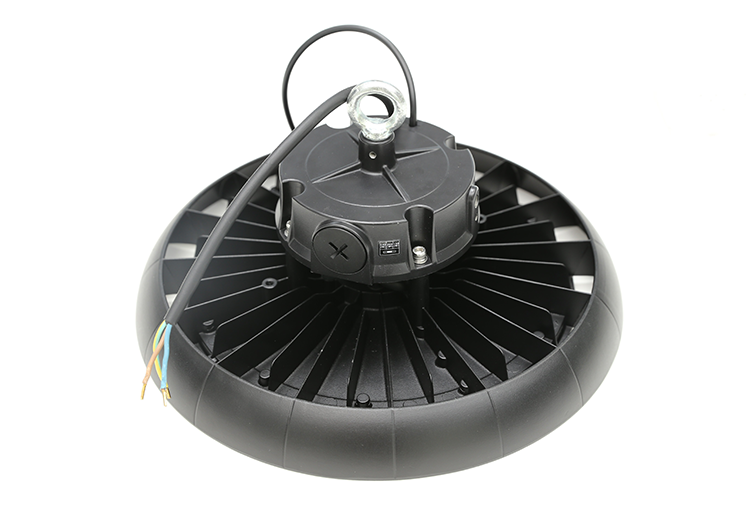

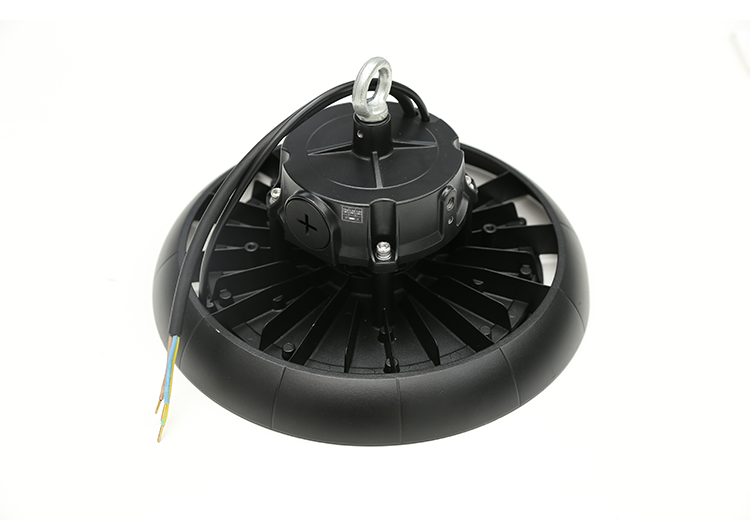

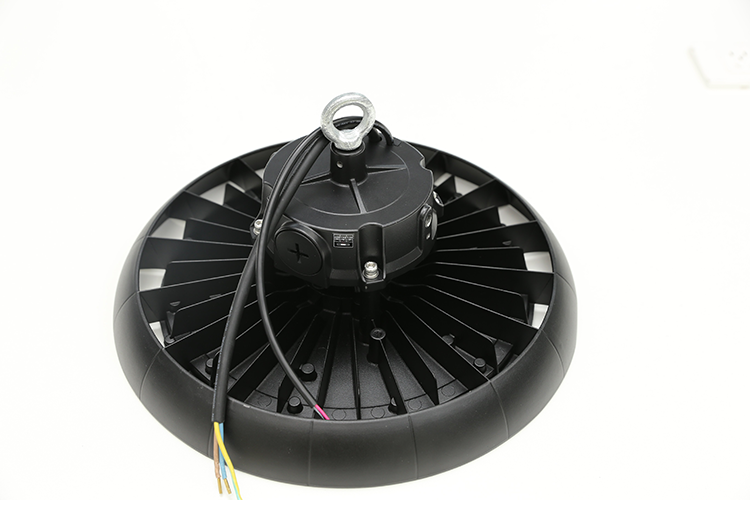

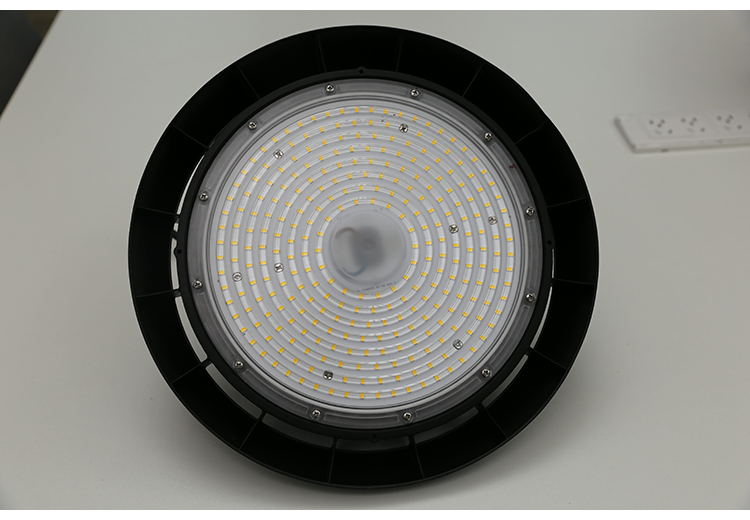

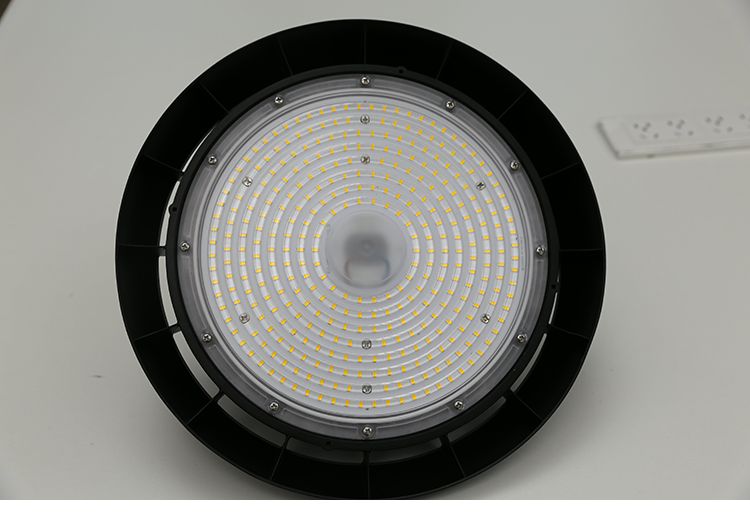

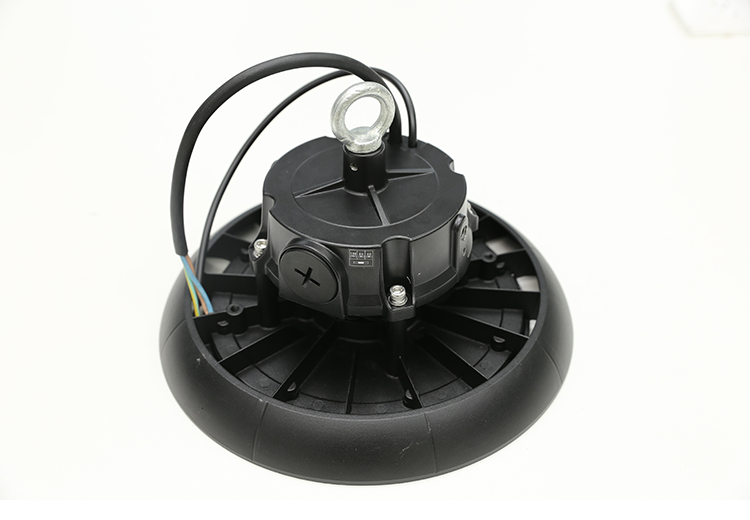

HBI SERIES high bay lights have fully considered the balance between product performance and cost control from the beginning of the design. Therefore, while ensuring good heat dissipation and highlighting efficiency, it brings excellent cost performance and optimal packaging volume. It adopts a high-quality die-cast aluminum heat sink, SOSEN flicker-free driver, with a light efficiency of up to 200lm/W and CRI>80, IP65, IK08, equipped with microwave motion sensor interface, easy to plug and play, and more energy-efficient.
HBI passed CE and CB certification, so it is an excellent choice for distribution, wholesale, project.
- Parameter
- Dimension
- Accessories
- Installation
- Video
- Short Video
- Download
Parameter
| Model NO. | Power (W) | Luminous Flux (lm)@max. watt |
|---|---|---|
| XJ-HBI100W | 60/80/100 | 14000/16000/18000 |
| XJ-HBI150W | 100/120/150 | 21000/24000/27000 |
| XJ-HBI200W | 120/150/200 | 28000/32000/36000 |
| XJ-HBI240W | 150/200/240 | 33600/38400/43200 |
Above lumens based on 5700K Ra:80
Light distribution curve
Input Voltage：100-277Vac 50/60Hz
Brand of LED Driver：SOSEN
Luminous efficiency: 140/160/180 lm/W
Mounting Type: Suspension mounted
Standards: 60598-2-1, 60598-1
Light Source：SMD 2835
CRI Range：Ra>80
Colour Temperature：4000K / 5700K
Operating Temperature：-40°C / +50°C

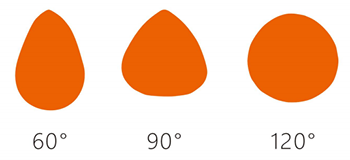

Beam Angle：90°(60°/120° optional)
Microwave Sensor：optional
System Lifetime:>100,000h
Power Efficiency:97%
Power Factor:>0.95
Certifications：CE, CB

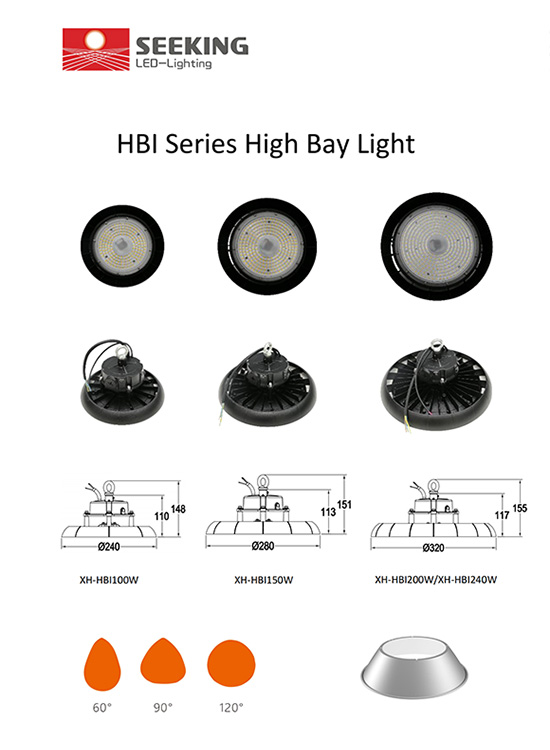

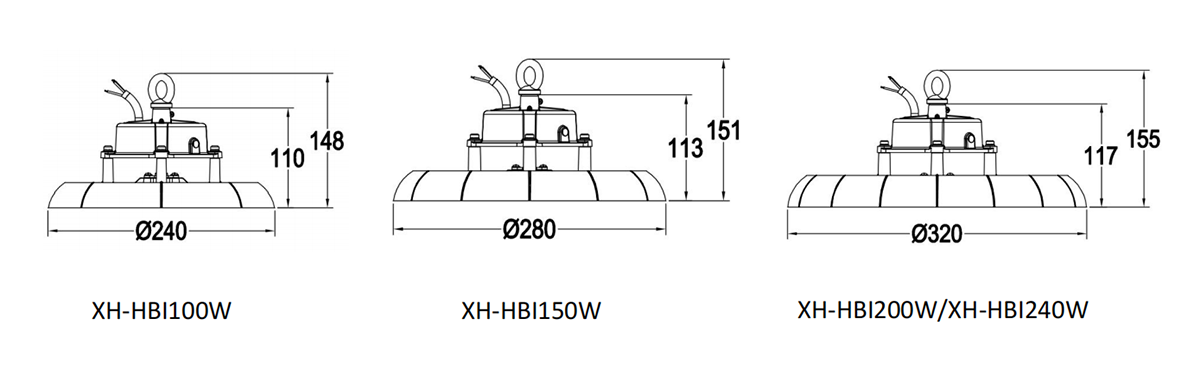

Dimension
Accessories
Installation
Video
Short Video
Download
-
HBI Series High bay light SPEC
-
IES+LDT
Please contact our sales to obtain password
