LED Industrial Stadium Light TFL Series-A

LED Industrial Stadium Light TFL Series-A

Model Number
TFL Series-A
MOQ
1 PCS
Place of Origin
ShenZhen, China
Certification
TUV CE ROHS SAA CB
Price
As price list
Packing Details
Standard packing ,1pcs/BOX
Delivery Time
7-10Days
Payment Terms
100%TTinadvanceunder10,000usd,30%deposit,70%balancebeforeshipabove10,000USD
Packing Size
705*910*175mm
Weight
36kgs
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Captcha

Loading verification code...

Please complete verification first


LED Stadium light/Spot light/High mast light can be used as LED flood light,sport light and tunnel light.Rotatable Multi-Modular.150-160lm/W ultra efficient.

PRODUCT PARAMETER


Data   SpecificationsTFL-A    series
Power240W300W480W720W
Input Voltage

AC100-180V : 192W;

AC200-305V : 240W;

50/60Hz

AC100-180V : 240W;

AC200-305V : 300W;

50/60Hz

AC100-180V : 384W;

AC200-305V : 480W;

50/60Hz

AC100-180V : 576W;

AC200-305V : 720W;

50/60Hz

Output VoltageDC45-48V
color temperature2800-3200 /4000-4500 /5500-6000K
CRIRa>70 & Ra>80

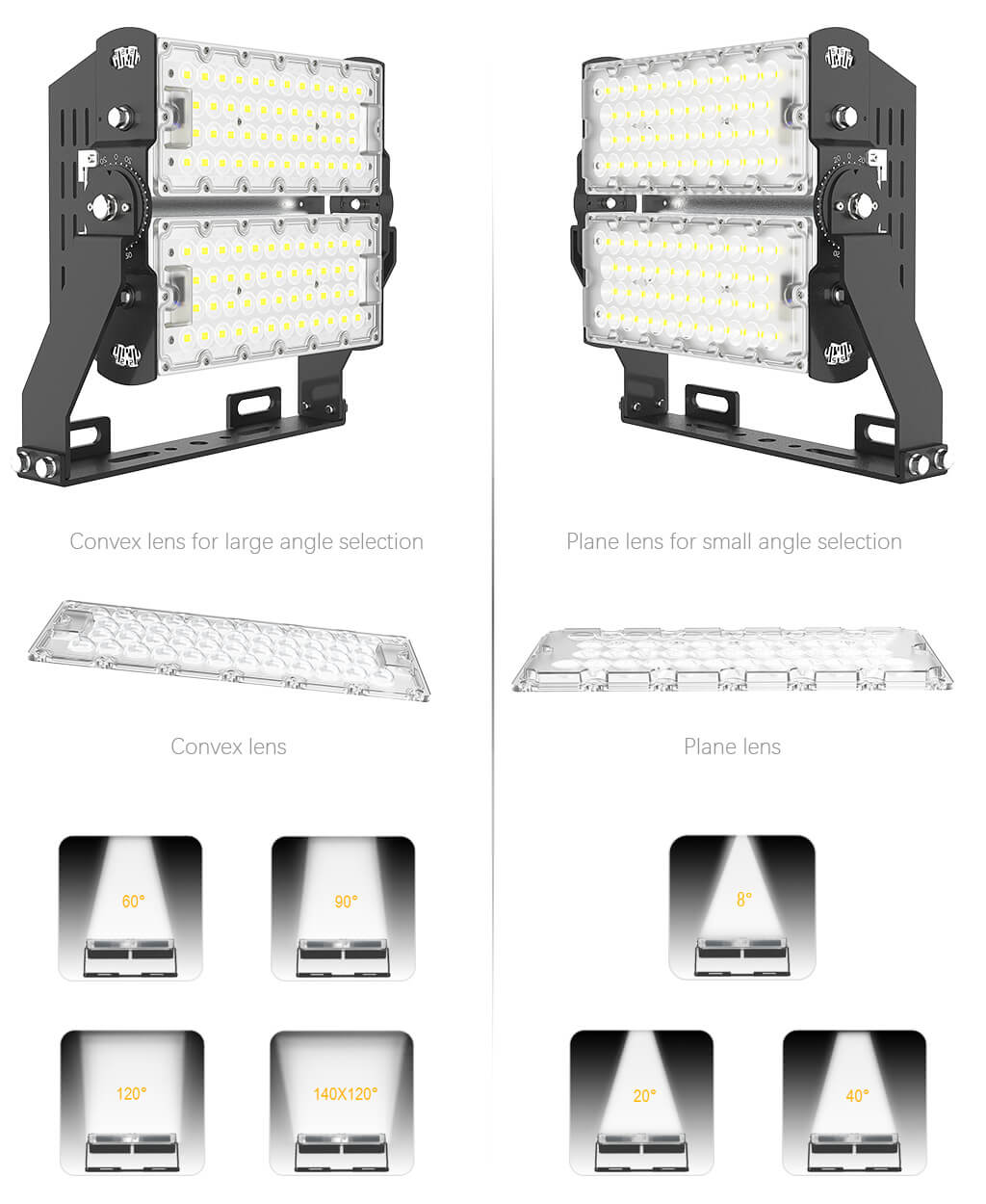

Average Beam angle(50%)8°/20°/40°/60°/90°/120°/140X100°
Light Efficiencywhole lamp output 145-155lm/w
Lumens 240W36000lm300W45000lm480W72000lm720W108000lm
LED90pcs(Cree   XPG3) for 8° /92pcs(Philips SMD 5050) for 20°,40°/368pcs(Philips SMD 3030)   for 60°,90°,120°,140°x100°135pcs(Cree   XPG3) for 8° /138pcs(Philips SMD 5050) for 20°,40°/552pcs(Philips SMD 3030)   for 60°,90°,120°,140°x100°180pcs(Cree   XPG3) for 8° /184pcs(Philips SMD 5050) for 20°,40°/736pcs(Philips SMD 3030)   for 60°,90°,120°,140°x100°270pcs(Cree   XPG3) for 8° /276pcs(Philips SMD 5050) for 20°,40°/1104pcs(Philips SMD 3030)   for 60°,90°,120°,140°x100°
DriverMEANWELL   ELG-240-48MEANWELL   ELGC-300-48MEANWELL   ELG-240-48*2MEANWELL   ELG-240-48*3
UGR20
Power Factor(Typ)0.95
Operating Temperature-4070 ℃)(Lowest operation temp -40°C, and highest 70°C)
Ip ratethe waterproof grade IP65 ,can work outdoor   under rain
Life Span50000Hrs (L70B50>50,000hrs)
Main MaterialsHigh purity aluminum+LED+PC lens
Operating Humidity20%~90%
Storage Temperature(-40~80 ℃)
Lumen Maintenance>85%(5000Hrs)
Others
Warranty5 years
Lux on 5 meter

7195lx

(lux at ground from 5m high)

9666lx

(lux at ground from 5m high)

14523lx

(lux at ground from 5m high)

21575lx

(lux at ground from 5m high)

Lux on 10 meter

1799lx

(lux at ground from 10m high)

2416lx

(lux at ground from 10m high)

3631lx

(lux at ground from 10m high)

5394lx

(lux at ground from 10m high)

Temperature on housing Max

66.5°C

(Test environment

temperature 25 °C)

66.2   °C

(Test environment

temperature 25 °C

75   °C

(Test environment

temperature 25 °C

65.6   °C

(Test environment

temperature 25 °C

Temperature on LED Max

73.5   °C

(Test environment

 temperature 25 °C

70.6   °C

(Test environment

  temperature 25 °C

85.7   °C

(Test environment

temperature 25 °C

84.2°C

(Test environment

 temperature 25 °C

Temperature on Driver Max

59.9°C

(Test environment

 temperature 25 °C

61.4   °C

(Test environment

  temperature 25 °C

65.8   °C

(Test environment

 temperature 25 °C

58.5   °C

(Test environment

 temperature 25 °C

Net weight

4.5   Kgs

 (without package)

7   Kgs

(without package)

11   Kgs

 (without package)

16.5   Kgs

 (without package)

Gross Weight(Kgs)

6   Kgs

(with package)

8.5   Kgs

(with package)

14   Kgs

(with package)

19   Kgs

(with package)

Package Size410x385x175mm515x410x175mm640x410x175mm910x420x175mm
InstallationsU-Bracket


 PRODUCT SIZE




PRODUCT DETAILS



NO.1

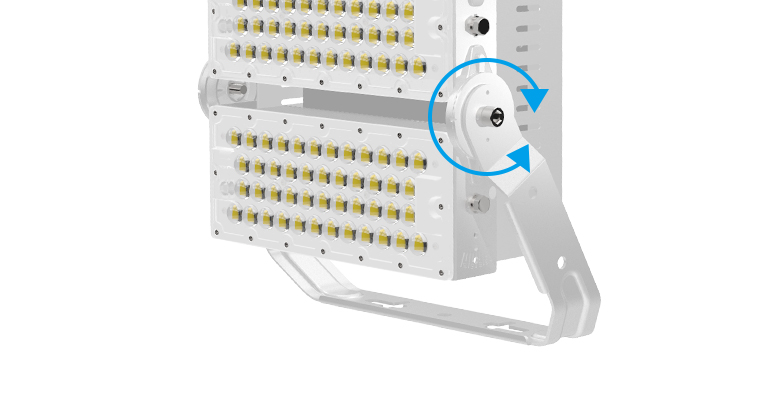

Thre-dimensional rotary bracket design,horizontal,vertical adjustable,with a clear scale table,angle adjustalbe as demands.
NO.2
Dial dial is more accurate and convenient for customers to adjust the angle.
NO.3
Screw lock attached installation,multiple adjustable points enable adjustable angle up to 270 degree.
NO.4
Adjustable single module can be adjusted up and down.
NO.5
Screw lock installation. The single module can be adjusted to adjust the angle 15 degrees to meet the special lighting applications.
NO.6
Fins keep same distance between each other and buckle tighten them as a whole.This structure strengthen firmness of fins and maximize heat-dissipate area with minimum weight.


THERMAL PRESENTATION



The combination of high thermal conductivity materials.The whole lamp is tested by thermal radiation: TFL- 480W-A The lowest operating temperature of the radiator is 33 degrees, the highest temperature is 72 degrees, the lowest operating temperature of the LED light source is 38 degrees, the highest temperature is 87 degrees, the whole product greatly improved the life and stability.

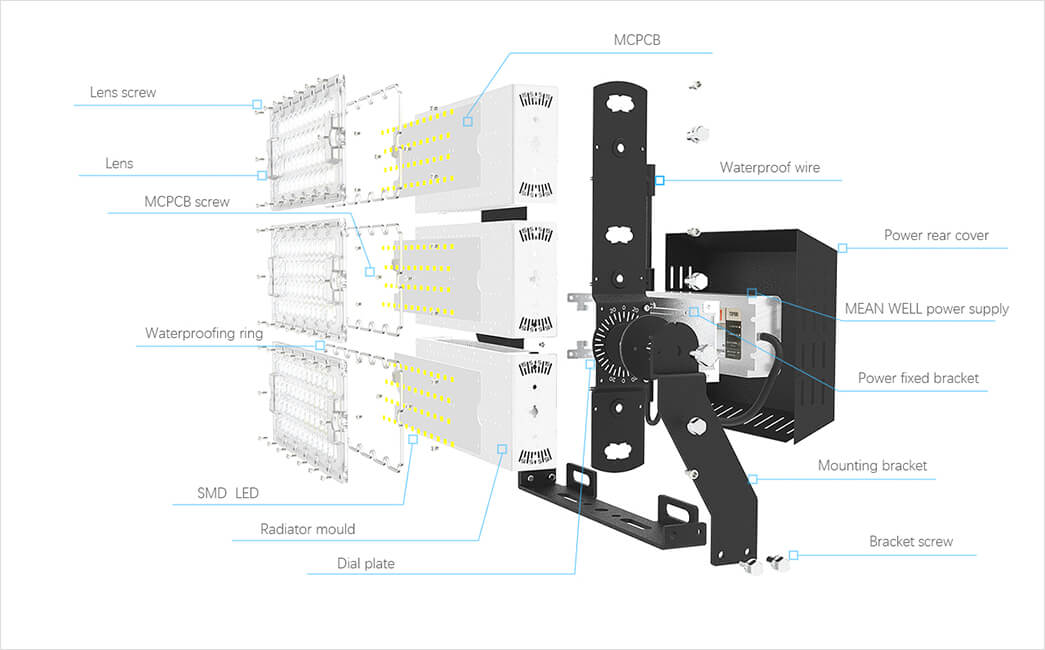

PRODUCT EXPLOSIVE VIEW




PROFESSIONAL LIGHTING DESIGN




FREE LIGHTING DESIGN



SIMULATION AND 3D RENDERING DESIGN FOR FREE
SEEKING offers free lighting design simulation service, including various indoor and outdoor designs. A series of parameters, like the practical solutions, the layout of lights and the light distributions etc, could be offered after the simulations. We can also answer your questions timely, optimize designs continuously and provide the best lighting solutions for you.
