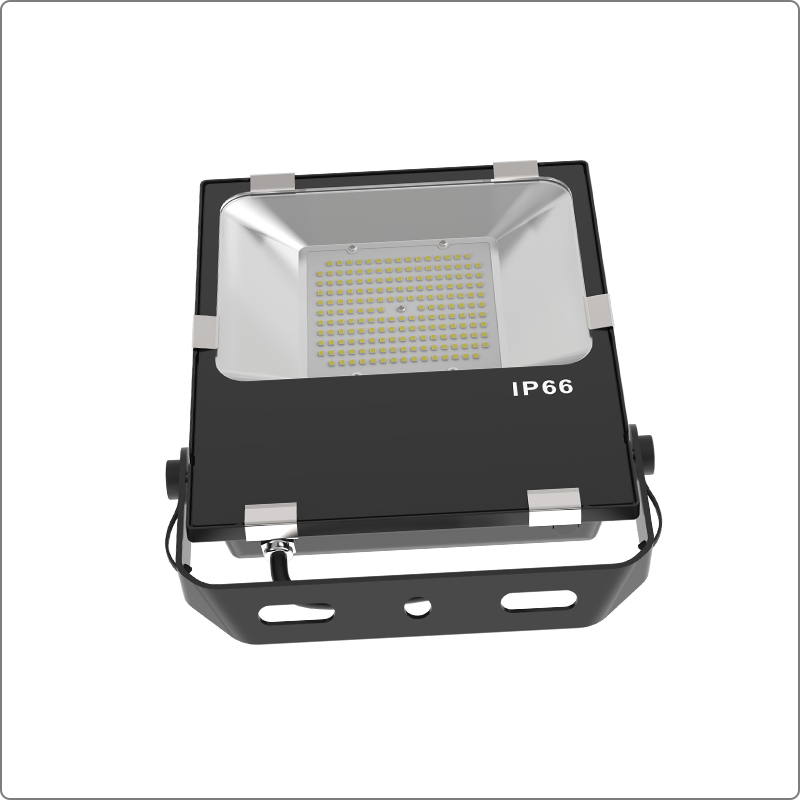

FLS floodlight is designed for LED floodlight lamps used in billboards, highways, tunnels, squares, parking lots, buildings, etc. it has the characteristics of high luminous efficiency, high color rendering index and long life.
Products using lumileds 2835 light source and SOSEN constant current power driver, L80B20 can reach more than 50,000 hours. Protection level up to IK08 and IP66.
Item NO. | XJ-FLS50W / XJ-FLS70W / XJ-FLS80W / XJ-FLS100W /XJ-FLS120W/ XJ-FLS150W / XJ-FLS180W /XJ-FLS200W/ XJ-FLS220W / XJ-FLS240W | ||
LED Quantity | 180PCS(50-70W) / 280PCS(80-100W) / 400PCS(120-250W)/525PCS(180-200W)/610PCS(220-240W) | ||
Brand of LED Chips | LUMILEDS LED (2835) | Brand of LED Driver | SOSEN |
Driver Type | Constant Current (CC) | Input Voltage &Frequency | 100-305Vac 50/60Hz |
Luminous Flux | 36000LM /240W | LED Luminaire Efficacy | >150LM/W |
Housing | Aluminum Alloy | Finish | Powder Coating |
Fixture Color | Black | IP/IK Rating | IP66/IK08 |
Operating Temperature | -40-50℃ | Dimmable | Dimmable and Non-dimmable |
L80B20@25℃ | >50000H | Beam Angle | 120° |
Model | Inner box size | G.W. | Carton Size | Qty. | G.W. |
50W/70W | 34.5x25.0x5.5cm | 2.4Kg | 36.5x26.5x48.5 cm | 8PCS/CTN | 21Kg |
80W/100W | 43.5x34.0x13.0cm | 4.0Kg | 45.5x35.5x85.0 cm | 6PCS/CTN | 26Kg |
120W/150W | 48.0x39.0x13.5cm | 5.4Kg | 50.0x40.5x88.0 cm | 6PCS/CTN | 35Kg |
180W/200W | 51.0x43.5x13.5cm | 7.0Kg | 53.0x45.0x59.0 cm | 4PCS/CTN | 30Kg |
220W/240W | 55.5x46.0x13.5cm | 7.6Kg | 57.5x47.5x59.0 cm | 4PCS/CTN | 33Kg |
※ Aerodynamic flow bring excellent cooling performance
※ Very Fashionable Industrial Design
※ The Housing- Tool-free open
※ LED Driver- Easy to install or disassemble
※ Easy for installation and maintenance
